Core Tenets of IPC Class 3 Standards in Industrial Control Electronics
Manufacturing an industrial control pcba with ipc class 3 standards and robust relay power testing requires strict adherence to zero-defect criteria, continuous operational uptime, and resilient high-voltage switching endurance under extreme environmental stress. Industrial automation electronics operate in environments subject to thermal cycling, chemical exposure, and continuous mechanical vibration. While IPC Class 2 permits cosmetic and structural deviations if functionality remains intact, IPC Class 3 mandates absolute operational integrity with zero room for unvetted assembly non-conformances.

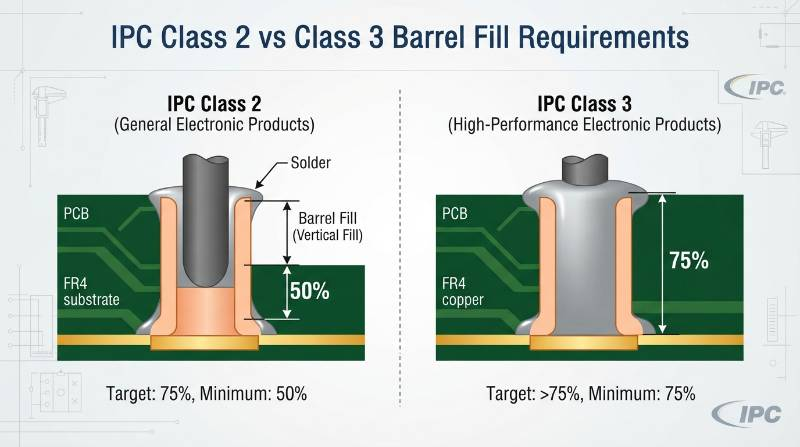

IPC Class 3 Standard: Electronic products where continued high performance or performance-on-demand is critical, equipment downtime cannot be tolerated, and the end-use environment may be uncommonly harsh. Requires a minimum of 75% vertical solder fill in Plated Through-Hole (PTH) barrels.Through our dedicated industrial control PCBA services, we configure Surface Mount Technology (SMT) and Selective Soldering lines to meet these stringent fabrication benchmarks:
| Inspection Parameter | IPC Class 2 (Standard Commercial) | IPC Class 3 (High-Reliability Industrial) |
|---|---|---|
| PTH Vertical Solder Barrel Fill | 50% minimum fill required | 75% minimum fill required |
| Internal Annular Ring Breakout | Up to 90° breakout permitted | 0° breakout permitted (min 1.0 mil ring) |
| Minimum Through-Hole Plating | 0.79 mil (20 µm) average | 0.98 mil (25 µm) average |
| SMT Solder Joint Alignment | Max 50% overhang off pad | Max 25% overhang off pad |
PCB DFM Review: Bridging DFF and DFA for High-Power Industrial Boards
A successful industrial production run hinges on executing a comprehensive comprehensive PCB DFM review prior to fabrication. This process bridges Design for Fabrication (DFF) and Design for Assembly (DFA) into a single pre-production check. Industrial boards routinely carry heavy copper weights (2oz to 4oz) to support 10A to 30A switching paths alongside fine-pitch microcontrollers. In our manufacturing experience, unoptimized copper distribution creates thermal sink imbalances during reflow, causing tombstoning on discrete passives.
Engineers must review CAM files (Gerber RS-274X or ODB++) to enforce trace width, spacing, and clearance rules matching ISO and IEC 61010 industrial safety norms. For 240VAC to 480VAC relay contacts, maintaining clear physical isolation prevents destructive dielectric arcing.
- Creepage & Clearance Isolation: Enforce a minimum of 2.5 mm creepage distance on 250V switching nodes, milling physical isolation slots (1.0 mm width minimum) beneath electromechanical relay footprints.
- BGA Escape Routing Rules: Maintain a minimum 4 mil trace and 4 mil space routing geometry on 0.8 mm pitch BGAs, utilizing dog-bone or VIPPO (Via-in-Pad Plated Over) structures to prevent solder drainage.
- Component Footprint Verification: Match all surface-mount pad dimensions to IPC-7351 guidelines to maintain correct heel and toe solder fillets.
- Solder Bridge Prevention: Require a minimum solder mask dam of 4.0 mils (0.1 mm) between adjacent QFN and SOIC pins to eliminate micro-bridging.

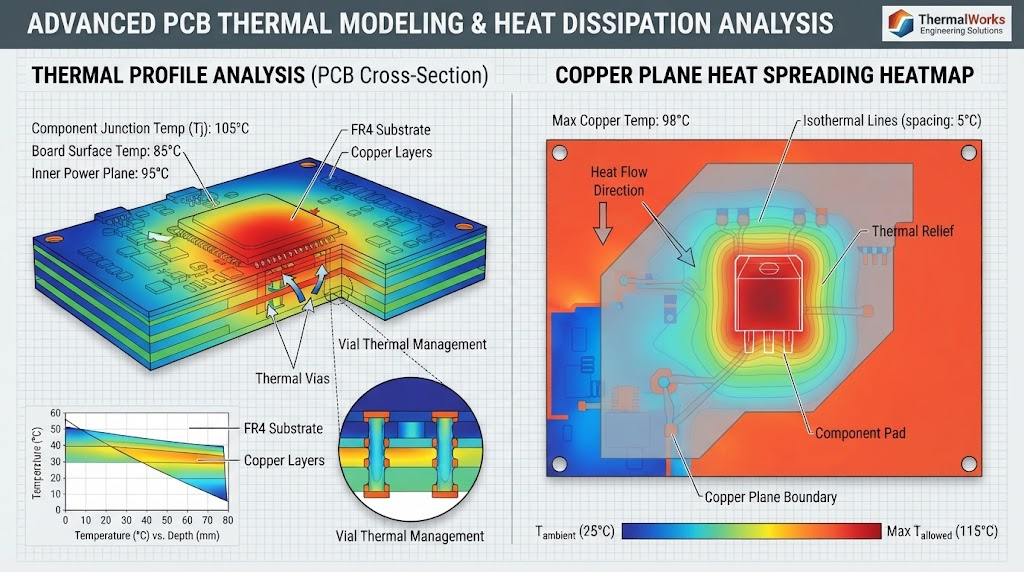

Mitigating High-Current Thermal Stress and Solder Joint Fatigue
Relay driver stages and switched high-current traces experience severe thermal expansion differences ($\Delta T > 60^\circ\text{C}$). Solder joint fatigue occurs when cyclic shear stresses break down the intermetallic compound (IMC) layer between the copper trace and lead-free SAC305 alloy. To ensure long-term mechanical survival under severe machine vibration, thermal vias (0.3 mm drill, 1.0 mm pitch) must be arrayed under relay coils and power MOSFET thermal tabs. Solder voiding on exposed thermal pads must remain strictly below 15% under IPC Class 3 criteria.Robust Relay Power Testing Methodologies for Heavy-Duty Switching

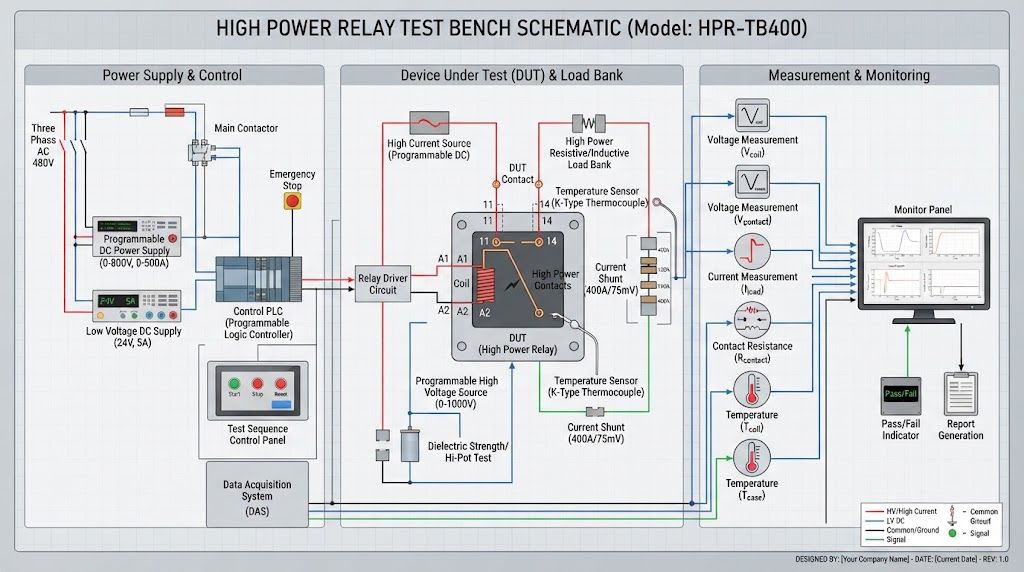

Standard automated optical inspection cannot verify the dynamic switching integrity of electromechanical relays under operational loads. Reliable industrial operations require comprehensive functional testing and quality assurance protocols.
- Contact Resistance Profiling (4-Wire Kelvin Sensing): Apply 1A to 10A current across closed contacts to verify steady-state resistance remains under 50 m$\Omega$. A resistance delta greater than 10% indicates contact misalignment or terminal solder cracking.
- Dielectric Withstand Testing (Hi-Pot): Apply 1500VAC to 2500VAC between isolated coil circuits and relay switch contacts for 60 seconds to detect breakdown across creepage barriers.
- Inductive Flyback & Surge Suppression: Oscilloscope capture of TVS diode or freewheeling diode clamp voltage during coil de-energization to verify transient voltage peaks remain below the rated breakdown limit of the driver IC.
- Full-Load Thermal Endurance Cycling: Cycle relay channels under 100% rated inductive/capacitive current load for 500 continuously logged cycles while monitoring real-time thermal drift via calibrated FLIR imaging.
Hi-Pot Leakage Threshold: Under IEC 61010-1 testing protocols, leakage current between isolated primary and secondary power stages must remain below 1.0 mA during a 2.0 kV dielectric stress test.
The Visianda 5-Stage IPC Class 3 & Relay Assurance Framework
To eliminate production bottlenecks and guarantee zero-defect field reliability, Visianda EMS implements an integrated validation methodology: The Visianda 5-Stage IPC Class 3 & Relay Assurance Framework. This systematic approach combines Design for Excellence (DFX) with full-lifecycle testing.
- 32-Point Pre-Production CAM Audit: Automated and manual review of annular ring clearance, trace spacing, thermal balance, and IPC-7351 footprint geometries.
- Precision SMT & Nitrogen Reflow: Lead-free reflow utilizing oxygen-controlled ($< 50\text{ ppm }\text{O}_2$) nitrogen environments to eliminate component oxidation and minimize solder voiding to under 15%.
- Dual-Vector 3D AOI & 3D AXI Inspection: Volumetric 3D solder fillet calculation, BGA ball sphericity analysis, and complete 75% through-hole barrel fill validation.
- Bed-of-Nails Relay Load Testing: Automated Functional Circuit Testing (FCT) validating 4-wire contact resistance, Hi-Pot isolation, and switching step response times.
- Conformal Coating & Environmental Sealing: Automated selective robotic spray of acrylic, silicone, or polyurethane conformal coating, inspected via UV luminescence for 100% moisture barrier coverage.
