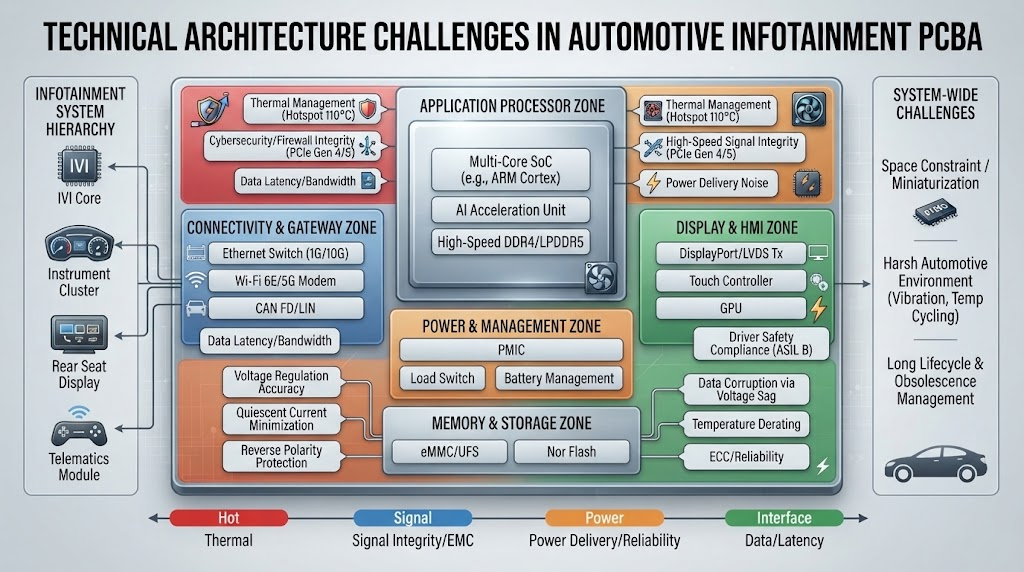

Technical Architecture Challenges in Automotive Infotainment PCBA
Automotive in-vehicle infotainment (IVI) and cockpit domain controllers now combine multi-core heterogeneous system-on-chips (SoCs), gigabit SerDes links, and multi-channel LPDDR4X/5 arrays on a single PCB. Delivering zero-defect SMT yields requires managing massive thermal gradients across 12 to 18-layer boards featuring uneven 2 oz copper distribution. Standard consumer assembly techniques fail under automotive constraints. In our manufacturing experience at Visianda EMS, high layer counts and localized ground planes cause intense dynamic PCB warpage during peak reflow. This mechanical strain directly threatens 0.4mm pitch micro-BGA packages and induces solder bridging or open joints.
Reliability must be built directly into the assembly process. Meeting severe thermal shock and vibration profiles demands robust automotive PCBA manufacturing that complies strictly with IATF 16949 and AEC-Q104 qualification parameters.
"Automotive Grade 2 and Grade 1 electronics operate across continuous ambient ranges of -40°C to +105°C and +125°C respectively, where solder fatigue occurs 300% faster than in standard computing equipment."
Fine-Pitch SoC, LPDDR, and High-Speed SerDes Integration
High-density cockpit processing boards integrate Ball Grid Array (BGA) components with thousands of I/O pins spaced at sub-0.5mm intervals. Routing high-speed SerDes lines (FPD-Link, GMSL) near these arrays leaves minimal tolerance for solder ball misalignment or excessive paste spread. Our production data indicates that dynamic board flexing during standard conveyor transport can shift micro-BGAs by up to 15 µm before the liquidus phase. Controlling package coplanarity during placement and maintaining uniform surface tension during reflow are mandatory engineering requirements.Precision SMT Assembly Processes for High-Reliability Automotive IVI
Automotive infotainment motherboard assembly requires step-controlled solder deposition, automated component alignment, and controlled-atmosphere reflow ovens to eliminate joint defects before encapsulation. Advanced Tier 1 hardware programs utilize precision SMT assembly services configured with closed-loop optical feedback at every critical station. Stencil printing is the primary failure point in micro-BGA assembly. We deploy laser-cut, electro-polished stencils treated with active fluoropolymer nanocoatings. Pairing these stencils with Type 4 or Type 5 SAC305/SACQ solder pastes guarantees consistent paste release across ultra-fine aperture area ratios below 0.60.- 100% 3D Solder Paste Inspection (SPI): Real-time volumetric measurement flags height deviations outside ±10% and area coverage drift exceeding 5 µm.
- Closed-Loop Feedback: Automatic offset corrections adjust printer stage alignment dynamically based on upstream SPI trend data.
- Component Pick-and-Place: Optical alignment systems center fine-pitch BGAs with a positioning accuracy of ±15 µm at 3-sigma limits.

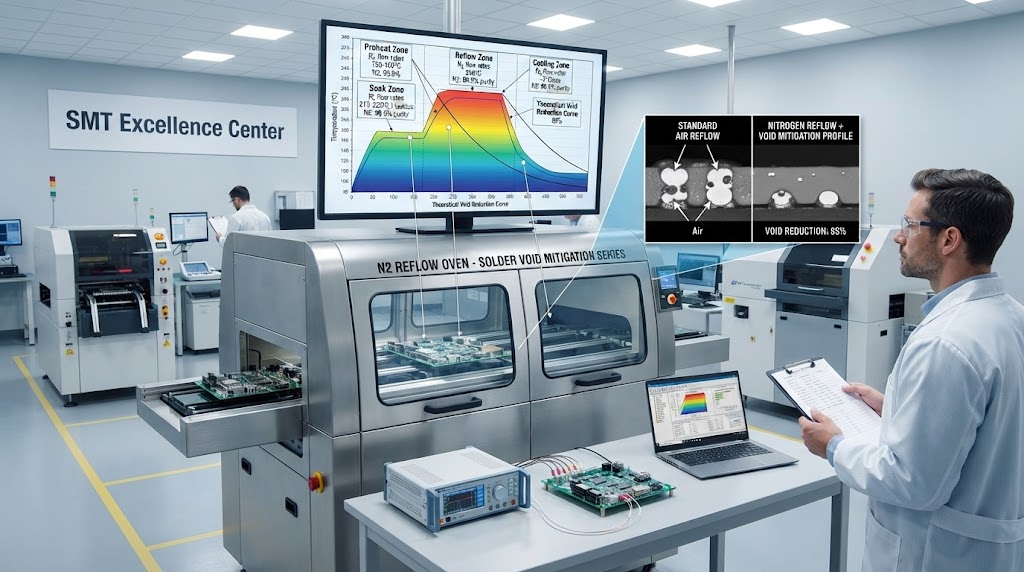

Multi-Zone Nitrogen Reflow Profiling & Solder Void Mitigation
Standard convection soldering in ambient air produces unacceptable oxidation and volatile entrapment beneath large BGA packages. SMT lines running infotainment motherboards operate 10-to-14 zone reflow ovens using high-purity nitrogen (N2) environments containing oxygen levels below 50 ppm.
While the standard IPC-A-610 Class 3 standard allows BGA voiding up to 25% of the total ball projection area, automotive Tier 1 specifications require solder voiding below 15 percent, often targeting under 10% on thermal ground pads. Implementing vacuum-assisted reflow modules during liquidus lowers void rates to below 5% by extracting outgassing flux volatiles under negative pressure (10-30 mbar).
"Engineering Insight: Applying a tailored saddle soak profile (160°C–190°C for 80–100 seconds) prior to SAC305 liquidus (217°C) stabilizes Delta T across the board to under 4°C, preventing head-in-pillow (HiP) defects."
The Visianda 5-Stage Automotive BGA Rework Protocol
High-density cockpit domain controllers represent hundreds of dollars in raw component costs per board. Discarding fully populated assemblies due to a single displaced SoC or defective memory ball is economically unsustainable. Visianda EMS engineers have systematized an IPC-7711/7721-compliant procedure called The Thermally Controlled 5-Stage Micro-Dynamic Rework Architecture to restore automotive motherboards to pristine factory integrity.- Controlled Pre-Bake: PCBA is baked at 105°C–120°C for 16–24 hours to eliminate internal laminate moisture and avoid delamination/popcorning.
- Targeted De-Soldering: Hot-air micro-nozzle top heating combined with wide-spectrum bottom-side infrared quartz preheaters heats the target BGA without shocking adjacent passives.
- Site Redressing & Solder Scavenging: Contactless hot-gas vacuum desoldering removes residual solder, establishing flat, uniform copper pads.
- Automated Split-Vision Placement: Optical prism alignment overlays the replacement micro-BGA ball array onto the PCB land pattern with ±5 µm accuracy.
- Closed-Loop Re-Soldering: Localized reflow profile execution matches the primary production thermal envelope, followed immediately by 3D X-ray verification.
Specialized Underfill Softening, Removal, and Site Preparation
Automotive BGAs are routinely bonded using capillary or edge-bond epoxy underfills to resist field vibration. Reworking these parts requires thermal-chemical softening without charring the underlying laminate or lifting fragile solder mask dams. We apply localized thermal jets maintained precisely between 130°C and 150°C—exceeding the underfill's glass transition temperature (Tg) while remaining safely below solder liquidus. Non-abrasive ESD-safe micro-scrapers lift softened epoxy fillets cleanly. The site is then dressed using contactless micro-vacuum scavenging nozzles, preventing mechanical abrasion to the 0.4mm pitch pads.Split-Vision Optical Alignment and Multi-Zone Profile Re-Soldering
Manual alignment is impossible on high-density automotive array packages. Split-vision optical systems project simultaneous images of the component's solder spheres and the PCB pad pattern onto a high-definition monitor. During localized reflow, quartz bottom heaters warm the entire mother assembly to 150°C. This suppresses localized z-axis expansion and eliminates substrate warping while the hot-gas top nozzle drives the replacement BGA through peak reflow (235°C–245°C for SAC305). Solder joint reliability (SJR) is maintained identical to original SMT passes.Automotive Quality Assurance, Conformal Coating & Reliability Testing
Every automotive board coming off the primary SMT line or the rework cell must pass automated non-destructive structural audits. Hidden BGA interconnects, micro-voiding rates, and solder bridging risks demand comprehensive Automated X-ray Inspection (AXI). To defend against moisture, salt spray, and atmospheric contaminants inside the vehicle cabin, assemblies receive automated conformal coating using automotive-grade polyurethane or acrylic materials. Applying specialized underfill epoxy dispensing beneath heavy BGAs provides strain relief against mechanical shock. Rigorous manufacturing controls operate under our comprehensive IATF 16949 quality assurance framework to guarantee complete process traceability down to individual component reel lot numbers.End-of-Line (EOL) Functional Testing & Boundary Scan (JTAG)
AXI verification is paired with IEEE 1149.1/1149.6 boundary scan (JTAG) testing to electrically interrogate sub-surface high-speed digital interconnects without physical test probe contact. Open circuits, signal shorts, and cold solder joints on differential SerDes lines are identified in seconds. Following boundary scan, motherboards undergo operational burn-in and thermal shock and vibration testing. Boards cycle from -40°C to +105°C inside climate chambers under full functional loads to uncover latent solder fatigue before modules ship to Tier 1 integration facilities.SMT Assembly vs. Advanced BGA Rework: Technical & Economic Matrix
Balancing first-pass assembly parameters against secondary rework processes requires a strict understanding of thermal profiles, void limits, and cost trade-offs.| Process Parameter | First-Pass SMT Line | Precision BGA Rework Station |
|---|---|---|
| Thermal Environment | Full convection (N2 tunnel, O2 < 50 ppm) | Localized hot-air nozzle + Large-area IR bottom preheat |
| Typical Peak Temp (SAC305) | 238°C – 245°C (Uniform whole-board Delta T < 4°C) | 235°C – 242°C (Localized, adjacent components < 160°C) |
| Target Solder Voiding | < 10% (Vacuum reflow: < 5%) | < 12% - 15% (Meets IPC Class 3 automotive limits) |
| Alignment Verification | High-speed flying optical camera (±15 µm) | HD Prism Split-Vision optical system (±5 µm) |
| Economic Impact | High-volume yield baseline (~98.5% first-pass) | Recovers up to 92% of defective high-cost PCBA stock |
Why Automotive Tier 1 & Tier 2 Suppliers Partner with Visianda EMS
Manufacturing cockpit electronics requires deep process discipline, advanced SMT machinery, and proven defect recovery workflows. Visianda EMS provides global Tier 1 and Tier 2 automotive suppliers with dependable turnkey PCBA manufacturing services designed to reduce scrap and stabilize production schedules.- IATF 16949 Certified Production: Quality assurance systems built specifically for automotive supply chain compliance.
- High-Speed SMT Capabilities: Multi-zone nitrogen reflow, high-precision pick-and-place lines, and 100% 3D SPI and AXI screening.
- IPC-7711/7721 Certified Rework: Specialized repair cells capable of salvaging complex multi-core SoC, GPU, and memory assemblies safely.
- Full Traceability & Material Control: Reel-level component tracking and climate-controlled MSL component storage.
Frequently Asked Questions (FAQ)
What is the maximum allowable BGA voiding rate in automotive infotainment motherboards?
While the IPC-A-610 Class 3 standard permits up to 25% total voiding in ball interconnects, automotive Tier 1 OEMs enforce stricter criteria. Maximum allowable voiding is typically capped between 10% and 15%, with central thermal ground pads restricted to under 10% to prevent SoC overheating.Does BGA rework compromise the long-term reliability of an automotive PCBA?
When performed strictly under IPC-7711/7721 guidelines using closed-loop bottom preheating and calibrated thermal profiles, reworked BGAs exhibit intermetallic compound (IMC) thickness (1 to 3 µm) and fatigue life matching initial SMT runs. The board easily passes standard AEC-Q100 thermal cycling.Can underfilled BGAs be safely reworked on high-layer automotive boards?
Yes. By utilizing localized thermal heating within the 130°C–150°C softening window and dedicated mechanical extraction tools, underfill can be removed without lifting solder pads or damaging the PCB laminate.Upgrade Your Automotive PCBA Manufacturing with Visianda EMS
Eliminate assembly defects, minimize scrap rates, and ensure IATF 16949-grade reliability for your cockpit electronics and infotainment motherboards.
